Gauntlet Hardware Pipeline

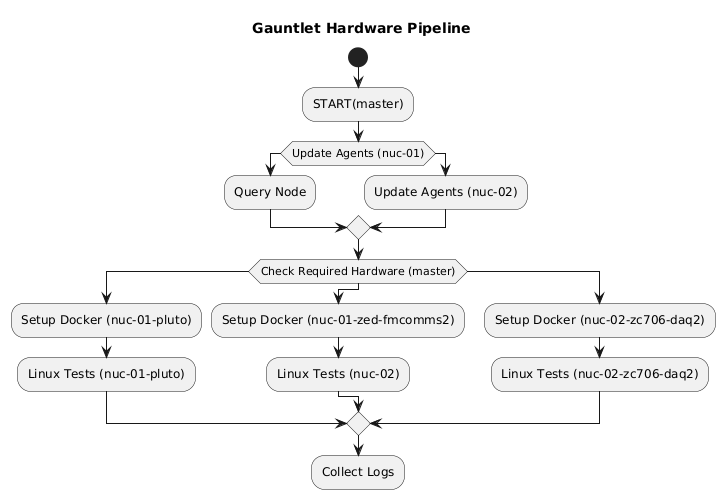

The main purpose of this shared library is to provide a standardize pipeline for software project that want to run code against hardware targets. The figure below shows an example pipeline that is generated using the Jenkinsfile below it.

These pipelines have 3 main phases. Starting from the left side of the pipeline, phase 1 is the first 3 horizontal stages. In the first stage each agent, tools required are updated. Then for the next stage, each agent is queried to determined available hardware. This information is returned to the master node and the necessary downstream stages are determined. This will occur in all pipeline configuration using the Gaunlet class. The generated downstream stages will be based on how the harness object is configured and each of these downstream stages are run in a docker container, thus the Setup Docker stage which is the start of phase 2.

In the example Jenkinsfile below which also what the figure above reflects, a stage is added from the Pipeline Stage Library. Added stages are run in the order in which they are added. Each of these stages will be run for each target board configuration. Defining the board or hardware setup desired, the set_required_hardware method should be used.

The final phase is for post processing, here logs and artifacts are gathered for collection. These will typically be saved to artifactory or to a logging server for analysis.

The available flags are documented for reference in the Jenkinsfile below. See Methods section for explicit syntax and all available methods.

Example Jenkinsfile

lock(label: 'adgt_test_harness_boards'){
    @Library('sdgtt-lib@jsl_updates') _

    //instantiate constructor method
    def harness = getGauntlet()

    //update first the agent with the required deps
    harness.update_agents()

    //set docker parameters
    harness.set_enable_docker(true)
    harness.set_docker_args(['Vivado'])

    //set required hardware
    harness.set_required_hardware(["pluto",
                                "zynq-zed-adv7511-fmcomms2-3",
                                "zynq-zc706-adv7511-fmcdaq2"])

    // Set stages (stages are run sequentially on agents)
    harness.add_stage(harness.stage_library("LinuxTests"))

    // Go go
    harness.run_stages()
}
